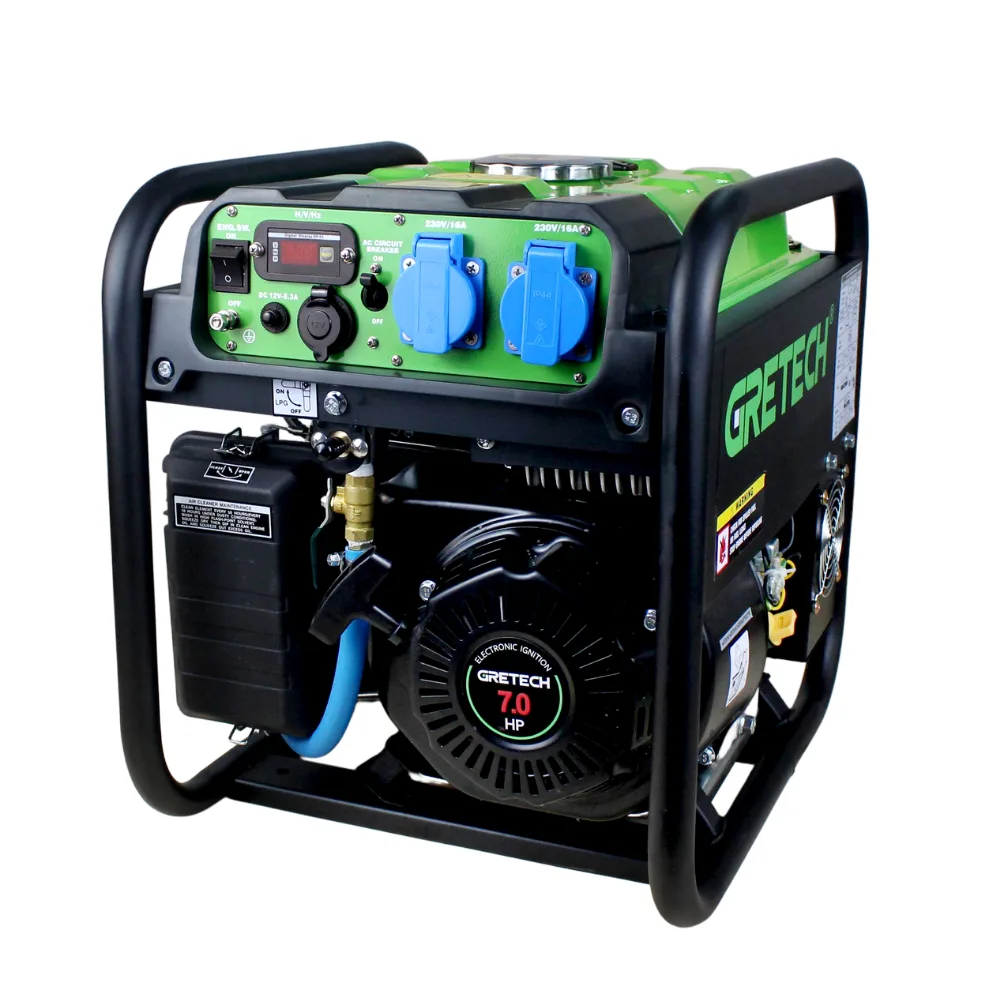

Portable Petrol Inverter Generator with Welding Function

Model:JL-4000IWCategory:Petrol Generators
  • Portable petrol inverter generator with built-in welding function
  • Rated 3800W, max 4200W (LPG/Petrol), 230V single-phase
  • Pure Sine Wave output, safe for sensitive devices
  • Inverter welding up to 160A, 100% duty cycle
  • Max electrode Ø4.0mm (Ø8.0mm in parallel)
  • Insulation Class H, Protection Class IP21
  • Engine: JL172F, 7.5HP, OHV, 223cc displacement
  • 7.5L fuel tank with level indicator

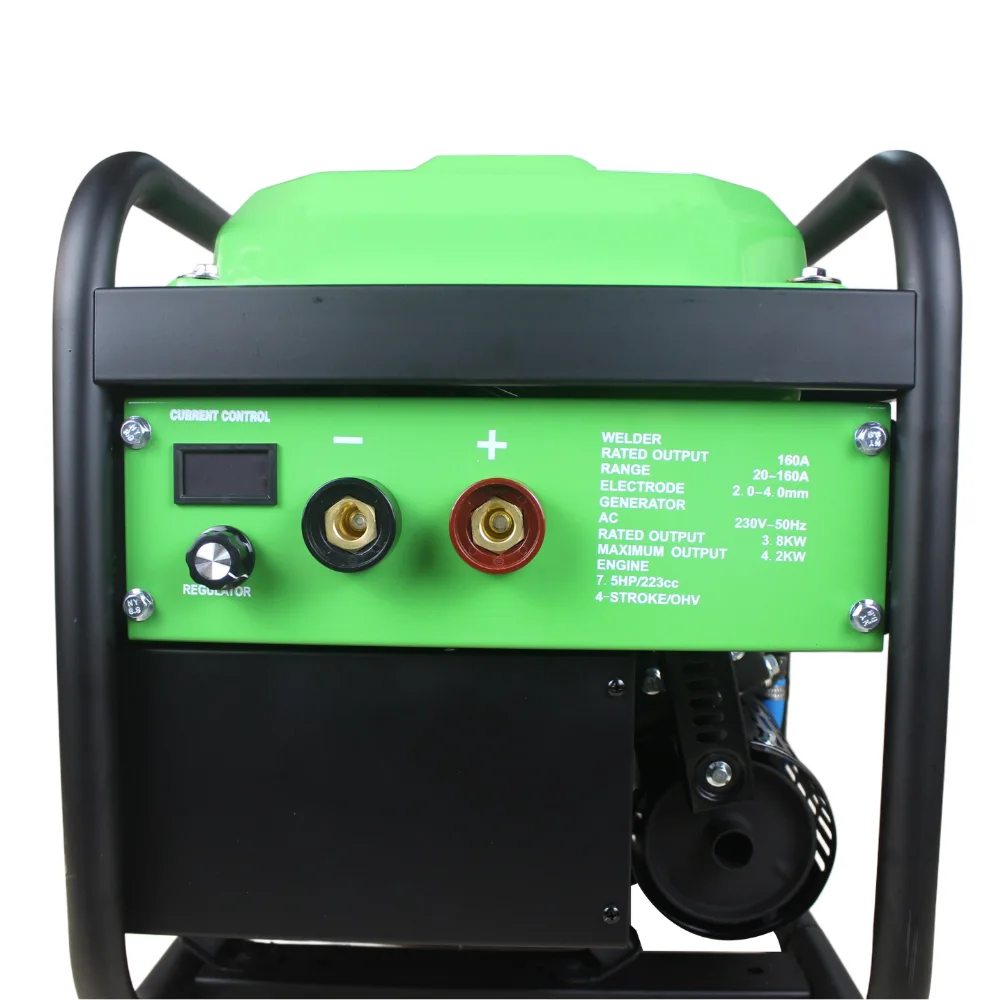

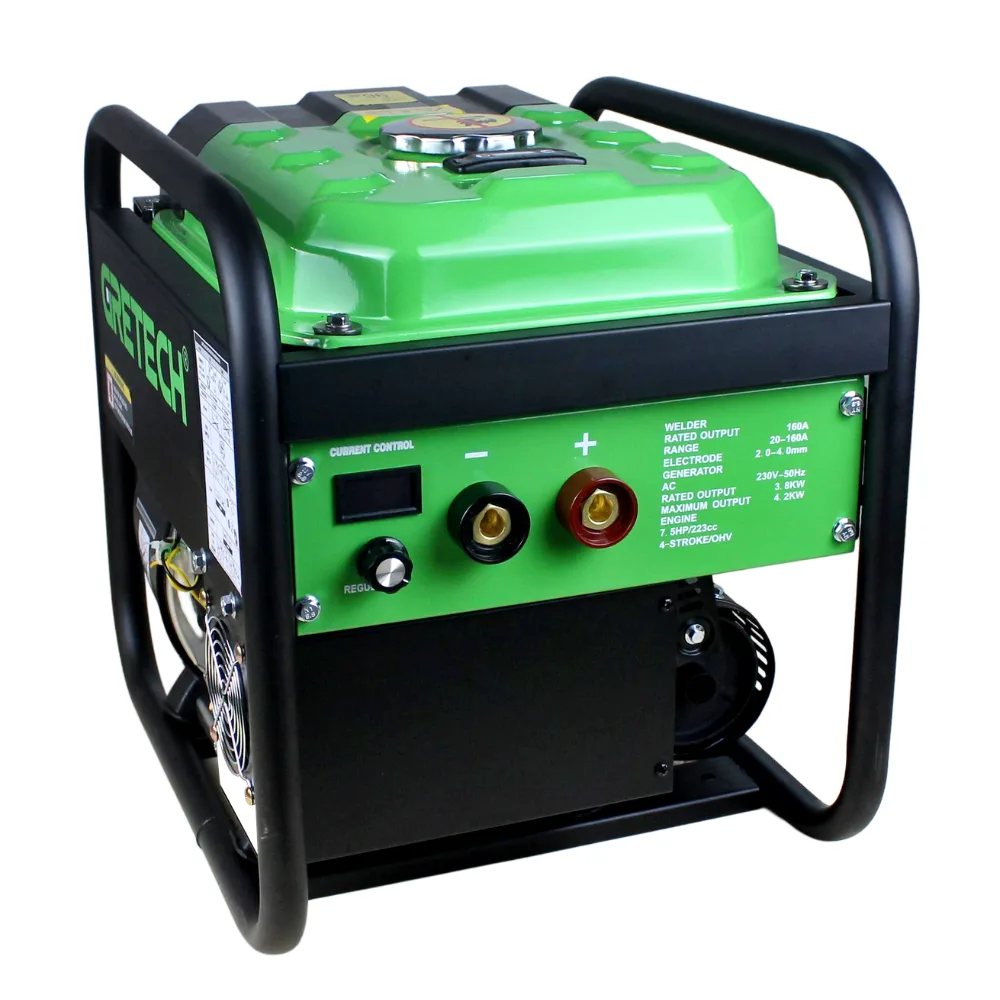

  • Clearly labeled rear control panel & welding terminals
  • Compact roll-cage frame for easy transport
Contact Us

Technical Parameters

Rated Power

3800 W
Max. Power (LPG / Petrol)

4200 W
AC Voltage

230 V
Phase

Single-phase
Output Waveform

Pure Sine Wave
Max. Welding Current

160 A
Duty Cycle

100% @ 160 A
Max. Electrode Diameter

Ø 4.0 mm (up to Ø 8.0 mm in parallel)
Insulation Class

H
Protection Class

IP21
Engine Model

JL172F / 7.5 HP / OHV
Displacement

223 cc
Fuel Type

LPG / Petrol
Fuel Tank Capacity

7.5 L (with level indicator)

Product Description

Power your work and welding needs anywhere with GRETECH JL-4000IW portable petrol inverter generator — a professional-grade dual-function machine built for demanding environments.

⚡ Generator Performance

  • Rated power 3800W, max power 4200W (LPG/Petrol)
  • 230V AC, single-phase, Pure Sine Wave Output — safe for sensitive electrical devices

🔧 Welding Capability

  • Inverter welding output up to 160A with 100% duty cycle @ 160A — stable, professional-grade performance
  • Max electrode diameter Ø 4.0 mm (up to Ø 8.0 mm when connected in parallel)
  • Insulation Class H, Protection Class IP21

🏎️ Engine Specs

  • Engine model: JL172F / 7.5 HP / OHV
  • Displacement: 223 cc
  • Fuel tank: 7.5 L with level indicator for easy monitoring

🎛️ Design & Usability

  • Compact, portable roll-cage frame for easy transport
  • Clearly labeled rear control panel & welding terminals for safe, efficient operation
  • Easy connection designed for demanding working environments

✅ Key Highlights

  • Dual-function: power generation + inverter welding in one unit
  • Pure sine wave ensures compatibility with electronic equipment
  • Parallel connection capability doubles welding electrode capacity
  • Ideal for construction sites, farms, and off-grid professional use

Related products

Send us a message

Contact Form

GRETECH hybrid generators powered by LPG will have the same power output with the gasoline, as our mixing valve of our hybrid generators automatically adjusts air intake and LPG/NG to air ratio, allowing the generators to output same power as do gasoline generators. More importantly, when the LPG/NG generators are in use, their engines rotate steadily, allowing stable power output.

GRETECH LPG/NG generators’ expected life expectancy are more than 2 times longer than that of gasoline generators.

Leakage-Proof: GRETECH hybrid generators’ mixing valve is uniquely designed so that even if the gas regulator or switch is kept on, the gas will never leak.

Easy Start: GRETECH hybrid generators, no matter brand new or not being used in a while, can always be immediately turned on by pulling the recoil rope up to 3 times.

Cost-effective: The fuel consumption costs of GRETECH, LPG (0.36 kg/kw.h) and NG (0.35 m³/kw.h) generators are much lower than gasoline generators (0.5 L/kw.h).

Compatible with source pressure ranging from 2.0 to 6.0 kPa (0.29-0.87PSI), our generators are suitable in almost all environments, including at home.

GRETECH generators use perfect amount of LPG/NG to meet output power, so the gas is always burnt completely, producing clean emissions.

The noise of GRETECH generators is 5dB quieter, as own patented muffler.
